Nominal voltage: DC 12V
Nominal capacity: 7A
Use for: Motor gate systems, Alarms, CCTV backup power supply, UPS, ride-on toy cars (12v models), portable LED light setups, radio equipment

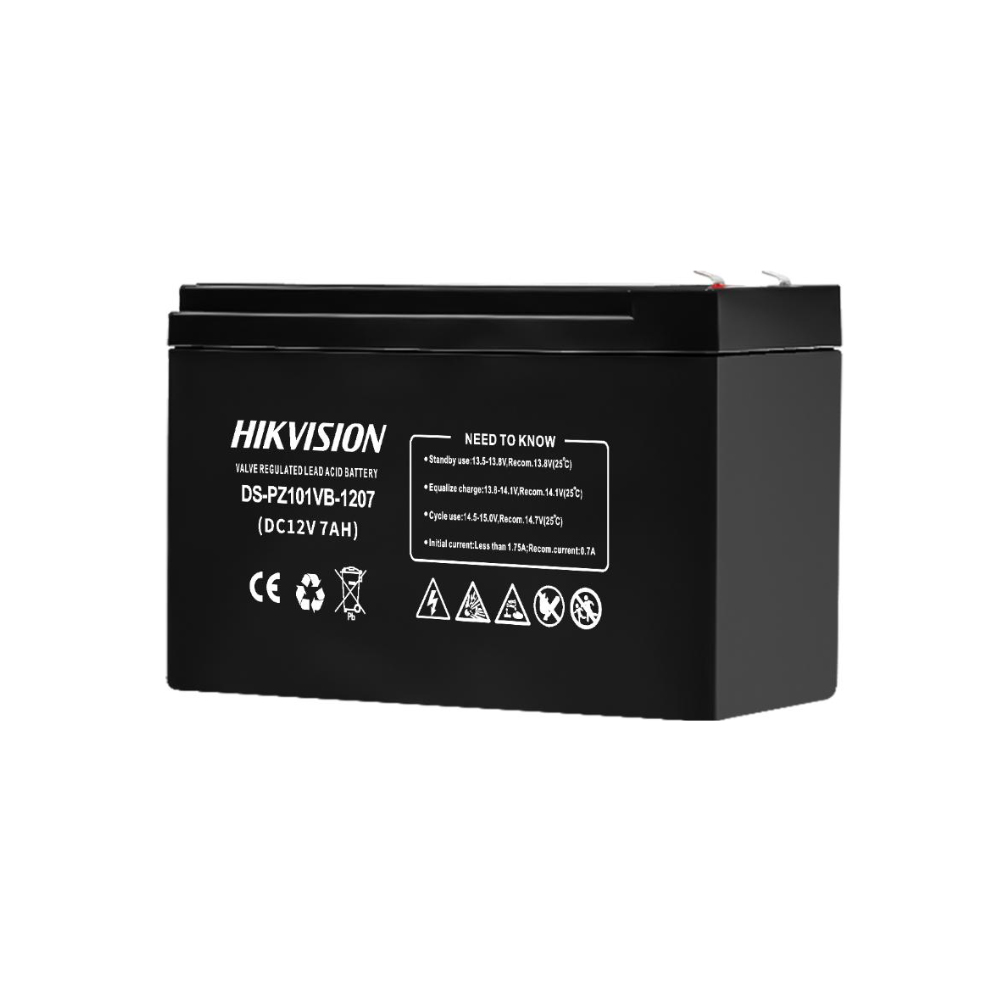

Reference: DS-PZ101VB-1207
Limited Stock, please contact us on 260-3700 before placing order
High corrosion resistant performance: Pb-Ca multi-alloy grid
High energy density and power density
Optimized capability of instant high-current discharging
Excellent charge acceptance ability
Excellent deep cycle discharge capability
Strong high and low temperature performance
Precision sealing technology
Operation temperature:
Discharge : -20℃~50℃（-4℉~122℉）
Charge : -20℃~50℃（-4℉~122℉）
Storage : -20℃~50℃（-4℉~122℉）
Internal resistance: 35.0mΩ (Full charged at 25℃)
Discharge current: 70A(5S) MAX
Rate capacity:
20 Hours (0.35A to 10.5V): 7.0Ah
3 Hours (1.81A to 10.5V): 5.43Ah
1 Hours (4.62A to 9.6V): 4.62Ah
Charging characteristics:
Charge current : 0.7A (at 25℃)
Float charge : 13.8V（-18mV/℃, at 25℃）
Equalize charge : 14.1V（-24mV/℃, at 25℃）
Cycle charge : 14.4V（ -30mV/℃, at 25℃）
Self discharge : 3%/month at 25℃
Dimension: 151 x 100 x 65mm
Terminal: F187/F250
Reference: DS-PZ101VB-1207
